The Pilot’s Eye: The Incredible HMD Technology That Changes Everything

In the fast-paced, high-stakes world of aerial combat, a pilot’s ability to see and react to their environment is everything. For decades, this was achieved through a combination of looking out the window and glancing at a cluttered array of instruments.

The introduction of the Head-Up Display (HUD) was a major step forward, projecting critical information onto a small screen at the pilot’s eye level. But today, a new technology has completely redefined the pilot’s experience: the Helmet-Mounted Display (HMD). This isn’t just an evolution; it’s a revolution, giving pilots a level of situational awareness once confined to science fiction.

What Is a Helmet-Mounted Display?

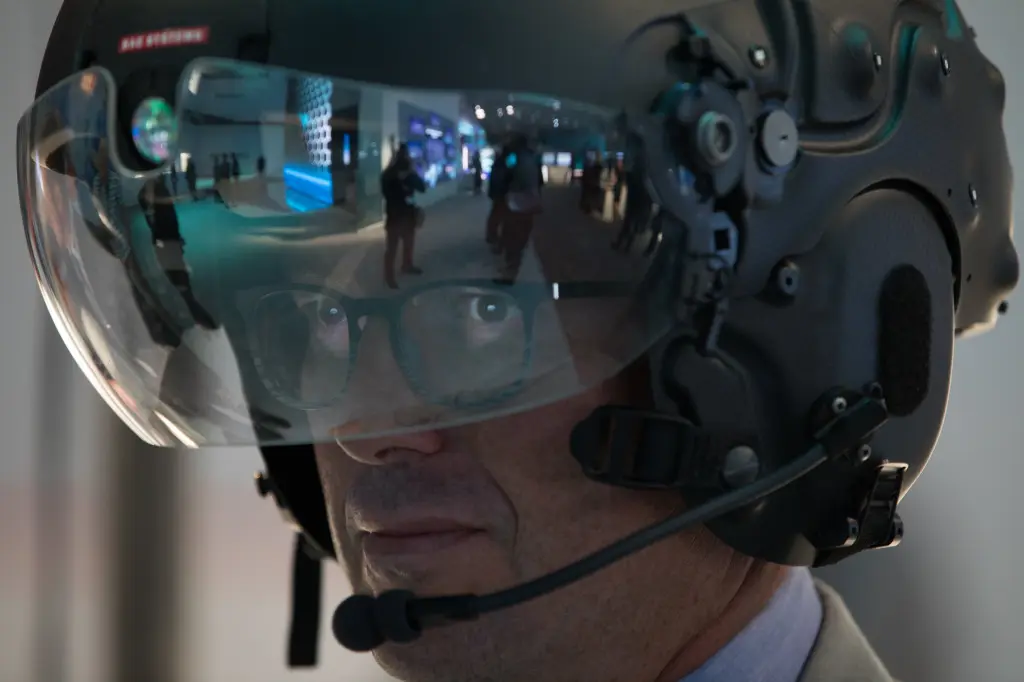

At its core, an HMD is a specialized helmet that projects flight, sensor, and tactical data directly onto the pilot’s visor. Unlike a HUD, which is a fixed display, the HMD moves with the pilot’s head. This allows them to see crucial information no matter where they are looking—up, down, or to the side. The HMD essentially creates a “virtual cockpit” that provides a constant, uninterrupted stream of information, eliminating the need for the pilot to ever look down at an instrument panel.

How HMDs Work Their Magic

The incredible capabilities of HMDs are the result of several sophisticated technologies working in harmony.

• Head Tracking: The most important component is the head-tracking system. This system precisely measures the pilot’s head position and orientation relative to the aircraft’s frame. Early systems used magnetic or optical trackers, but modern HMDs use advanced hybrid inertial tracking systems. These combine an Inertial Measurement Unit (IMU) on the helmet with an optical sensor in the cockpit. The IMU provides high-speed tracking, while the optical sensor corrects for drift over time, resulting in extremely accurate and low-latency head tracking. This is what allows the projected information to remain perfectly aligned with the real world as the pilot moves their head.
• High-Resolution Projection: HMDs use advanced optics and display technology to project high-resolution imagery and symbology onto the pilot’s visor. This display can present a wide range of information, including airspeed, altitude, targeting cues, and weapon status. The symbology is collimated, meaning it’s focused at infinity, so the pilot’s eyes don’t have to constantly refocus from a distant object to a close-up display.
• Sensor Fusion: In advanced aircraft like the F-35, the HMD is an integral part of the aircraft’s sensor fusion system. Data from all the aircraft’s sensors—radar, infrared, and other systems—is automatically combined and filtered, and the results are presented to the pilot in an intuitive way. This prevents the pilot from being overwhelmed by raw data and provides a single, unified picture of the battlespace.

The Game-Changing Capabilities

HMD technology has fundamentally changed how pilots operate in three key areas:

1. “Look-and-Shoot” Weapon Targeting: With an HMD, pilots can aim and fire weapons simply by looking at a target. They no longer need to maneuver the entire aircraft to get a target in the center of a fixed HUD. This is a massive advantage in a dogfight, as it allows a pilot to acquire and engage targets in a fraction of the time and with much less effort. Paired with high-off-boresight missiles, which can be fired at targets not directly in front of the aircraft, HMDs have completely redefined the tactics of close-range air combat.
2. The “Transparent Cockpit”: The most revolutionary feature of some HMDs, like the one in the F-35, is the Distributed Aperture System (DAS). This system uses six infrared cameras mounted around the aircraft’s fuselage to provide a complete 360-degree, real-time view of the outside world. The HMD stitches this imagery together and projects it onto the pilot’s visor, allowing them to “see through” the aircraft’s floor or airframe. This capability is invaluable for situational awareness, especially in cluttered environments or during tricky landing maneuvers.
3. Night Vision Integration: Modern HMDs seamlessly integrate high-resolution night vision, eliminating the need for pilots to use separate night vision goggles. The night vision imagery is projected directly onto the visor, providing a clear view of the outside world in low-light conditions. This enhances pilot safety and effectiveness by reducing fatigue and removing a potential point of distraction.

The F-35 is a prime example, being the first modern fighter to completely eliminate the traditional HUD in favor of the HMDS. The use of this technology is not limited to the F-35, as it is also found on other modern fighters like the Eurofighter Typhoon and the Saab Gripen. The impact of HMD technology extends beyond military aviation, with similar concepts now being explored for commercial and even civilian applications, proving that the pilot’s eye has never been more empowered.

To get a better understanding of how the F-35’s Gen III HMDS works, you can check out this video: F-35’s $400K-Worthy Gen III Helmet Mounted Display System (HMDS) Fitting and Testing which shows the fitting and testing process for the F-35’s helmet.
